Parameters of ECG Machine | |||
CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
Input circuit | Floating | Voltage tolerance | ± 500mV |
Input circuit current | ≤ 0.1µ A | Time constant | > 3.2s |
Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
Operation mode | Manual/Auto | Noise level | ≤ 15µ Vp-p |
Filter | AC. EMG Filter | Threshold | ≤ 20µ V |
Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (± 3%) |
Input Impedance | > 50MΩ | Sensitivity | 5 ，10 ，20mm/mV |
Patient current leakage | < 10µ A | Recorder | High resolution thermal printer |
Specification of fuse | T1.6A 250V Ø5×20 | Battery | Built-in rechargeable Li-ion battery 11.1V(2200mAh) |
Recording paper | Thermal recording paper | Package | 256mm*204mm*66mm |
Unit Package | 350mm*175mm*250cm | Gross Weight | 3Kg |
Accessories | |
1. ECG Socket lead Cable 1 set | 4. Instruction book 1 book |
2. Limb electrode clamp 1 set | 5. Plug 1 piece |
3. Chest electrode 1 set | 6. 80mm Thermal recording paper 1 set |

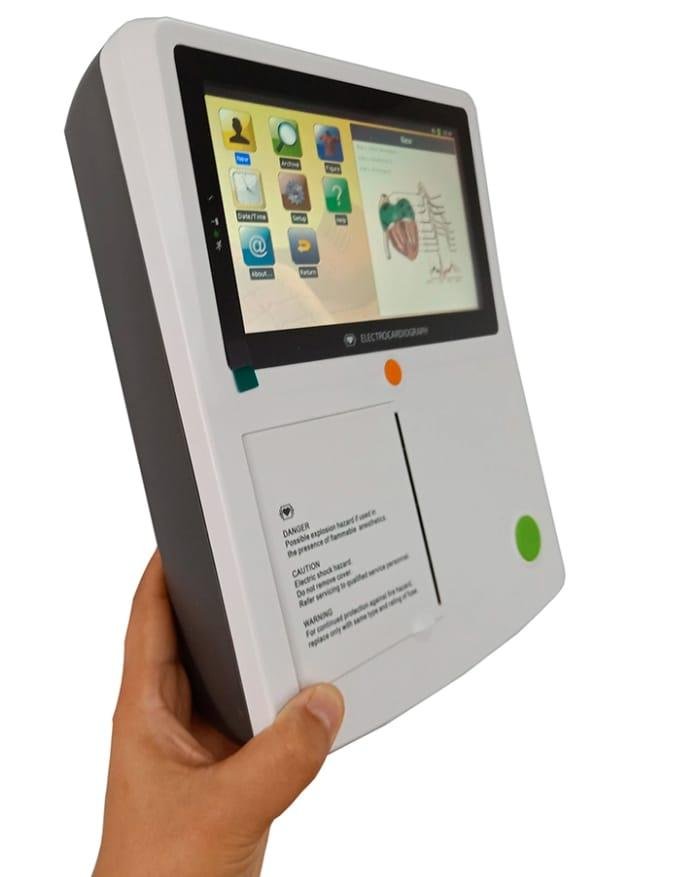

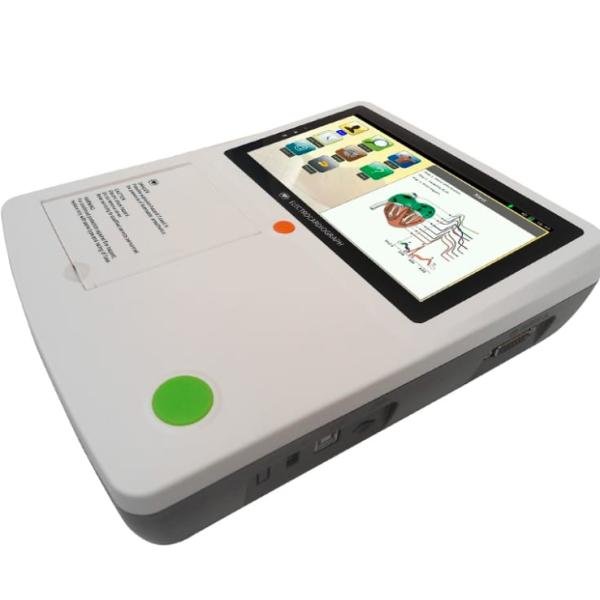

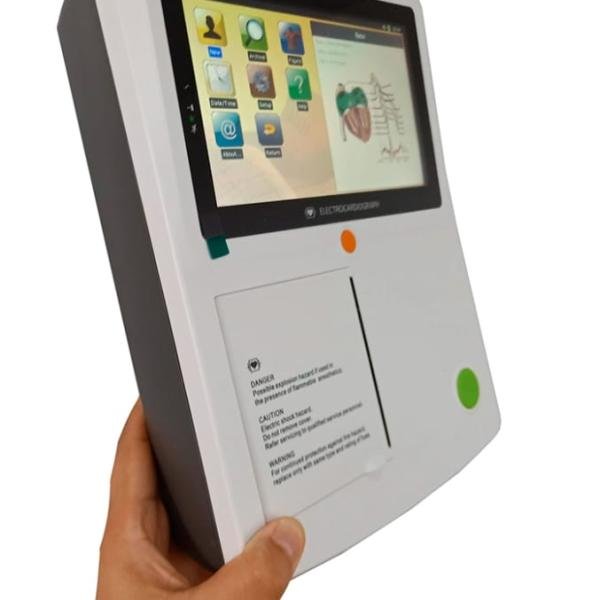

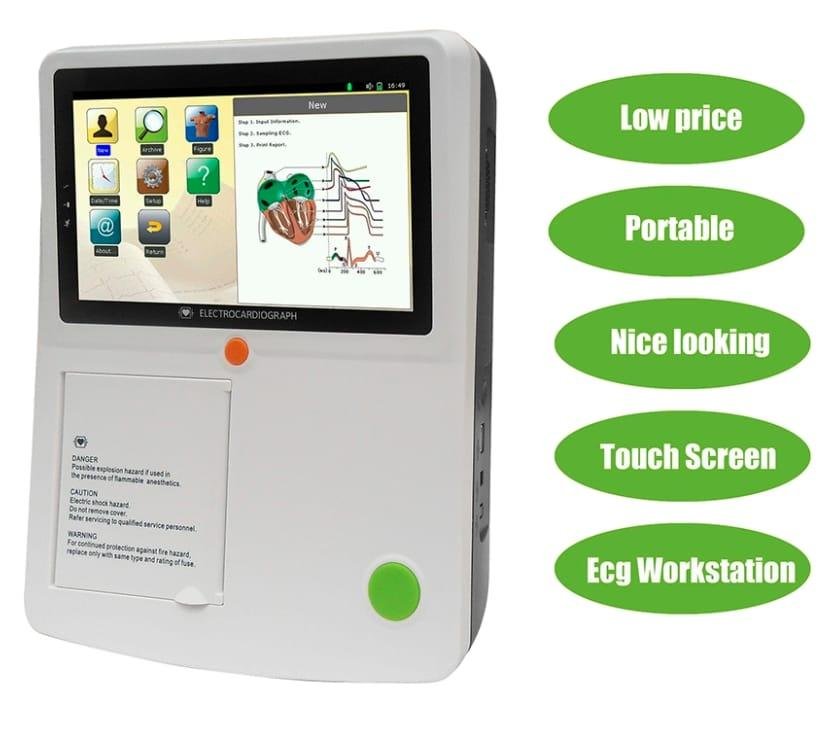

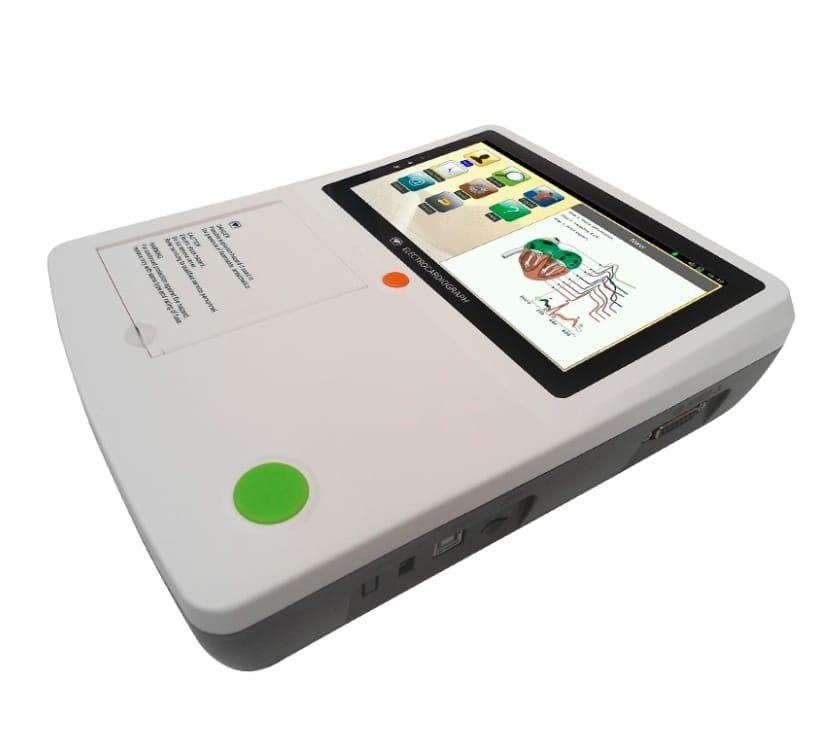

The Pulsemed N3 represents the modern standard for efficient and reliable 3-channel electrocardiogram (ECG) testing in clinical settings. Designed for high-throughput environments like clinics, diagnostic labs, and physician offices, this machine delivers the crucial data needed for cardiac assessment with enhanced workflow efficiency.
Its core strength lies in its ability to simultaneously record and print three ECG channels, providing a more comprehensive view of the heart's electrical activity compared to single-channel models. This allows for quicker detection of arrhythmias, ischemia, and other cardiac abnormalities. The Pulsemed N3 typically features a built-in thermal array printer for crisp, immediate reports, a large color display for clear waveform visualization, and user-friendly operation with automated analysis and manual override capabilities.
As a workhorse device, the Pulsemed N3 3-channel ECG machine balances advanced functionality with operational simplicity, making it an ideal choice for healthcare professionals who require dependable, detailed, and fast cardiac diagnostics.
